SMD2020 P4 Soft Flexible Led Display Module Screen Programmable

Brand Name : HS

Model Number : P4

Certification : CE ROHS FCC

Place of Origin : SHENZHEN

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 1000Set

Delivery Time : 7-15 workdays

Packaging Details : Fight case/Wooden case/Honeycomb Box

Name : soft led display

Pixels : 4mm

Density(pixels/m2) : 62500

Model Size : 256mm*128mm*16mm

LED chip : SMD2020

Refresh rate : 3840Hz

Brightness : 1000 cd/m2

Led Color : 1R1G1B Full Color

Best viewingangle : (Horizontal/Vertical)140 /140

Best Viewing Distance : ≥4m

Working voltage : AC 220±10% or 110±10%

IP Grade : IP38-IP45

Contact Now

LED flexible module, flexible and versatile, can bend freely.
Strong magnetic suction installation, simple, fast, and precise.
Modular structural design, easy to disassemble and maintain.
The surface adopts a silicone mask, which is soft and easy to bend.
NO Project Technical Parameters
1 Pixel pitch 4mm
2 Pixel density 62500dots/m²
3 resolution 64dotsX32dots
4 size 256mm X128mm X11mm
5 weight 0.5kg
6 Bending arc Center bend arc≤120°
7 Number of bends <1000pcs
8 Driving method 16-bit constant current driver
9 scanning method 1/16 s
10 Operating Voltage DC5V±10%
11 Max current 2.6A
12 Max Power 13W
13 Power interface VH4
14 Signal interface HUB75D(IDC16)
15 brightness 1000cd/m²
16 Color &temperature 9000±500K
17 Perspective 120° 120°
18 Best sight distance ≥4m
19 Gray scale ≥14 Bit
20 Refresh rate 1920Hz-3840Hz
21 Dimming 800-1000
22 Service life 100,000H
23 Operating temperature - 20℃~60℃
24 Working humidity 10%-95%RH
25 storage temperature - 40℃~80℃
26 Drive device MBI5124

Features:

1. High flexibility
Tailored according to needs, the module has extremely high flexibility and a curvature of less than 90 °;
2. Sturdy structure
The box body adopts a die stamping and folding process, with high strength; CNC precision machining, precise size and good consistency;
3. Brightness adjustable
Using specialized technology and devices, adjusting display brightness through hardware/software implementation methods without sacrificing the grayscale of the image;
4. Ultra wide viewing angle
Both horizontal and vertical viewing angles can reach 140 °, and high-quality display effects can be seen from all angles;
5. High protection
High standard, dust-proof, moisture-proof, and corrosion-resistant process treatment, suitable for long-term use in harsh outdoor environments;
6. Easy to maintain
The design of the rear door of the box allows for front/rear maintenance of the module;
7. Standardization
Adopting standardized modules and boxes for quick and convenient installation;
8. Energy saving environment
Excellent heat dissipation performance, low power consumption, and high stability;

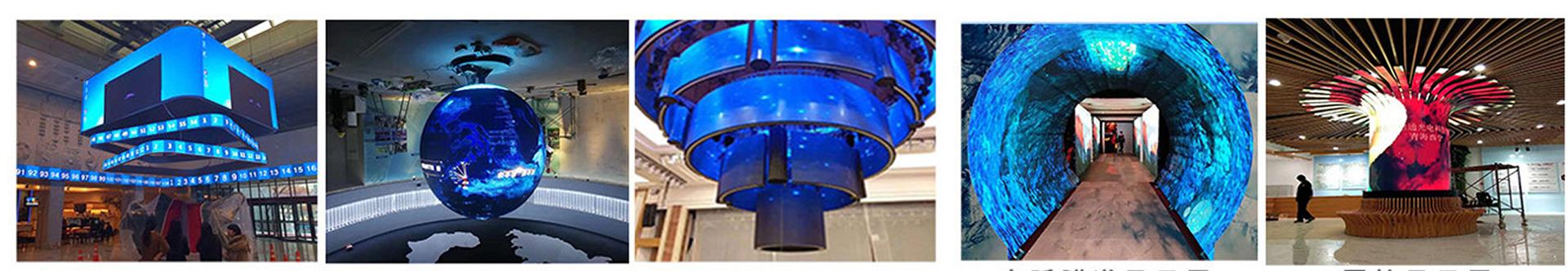

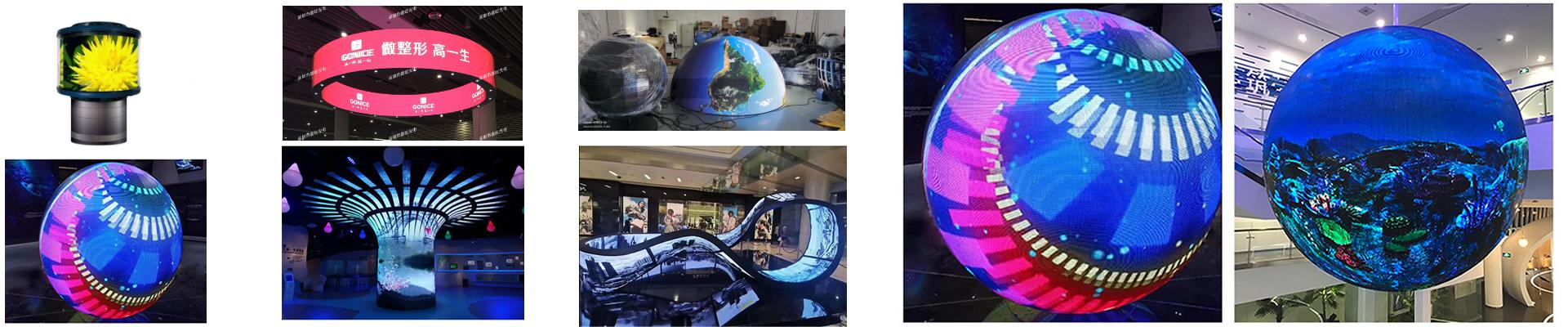

Product Pictures:

SMD2020 P4 Soft Flexible Led Display Module Screen ProgrammableSMD2020 P4 Soft Flexible Led Display Module Screen Programmable
