Outdoor P6 Spherical Led Display Ball Screen Full Colour Custom Made

Brand Name : H&S LED

Model Number : P6

Certification : CE ROHS FCC

Place of Origin : SHENZHEN

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10Set

Delivery Time : 25-45 workdays

Packaging Details : Fight case/Wooden case/Honeycomb Box

Name : Spherical LED display

Model : LED full color

Pixels : 6mm

use : outdoor

Module Size : Customized

Spherical Diameter : Diameter 3m

Brightness : 5000cd/sqm

Refresh Rate : 1920-3840HZ

Grey Scale : 14-16bit

Working Temperature : -20°~+50°

Operating Voltage : DC110V-220V

Installation : Hanging/Stacking/Floor Standing

Media Available : Photo, EDA/CAD Models, Other

Contact Now

Outdoor LED ball screen
P6 Diameter 3m Spherical LED Screen
waterproof and dustproof led flexible display
Customize size P6 Diameter 3m Spherical LED Screen with a 3D ball shape Display Screens
Full Colour led display
Pixel Pitch: P6mm,P8mm

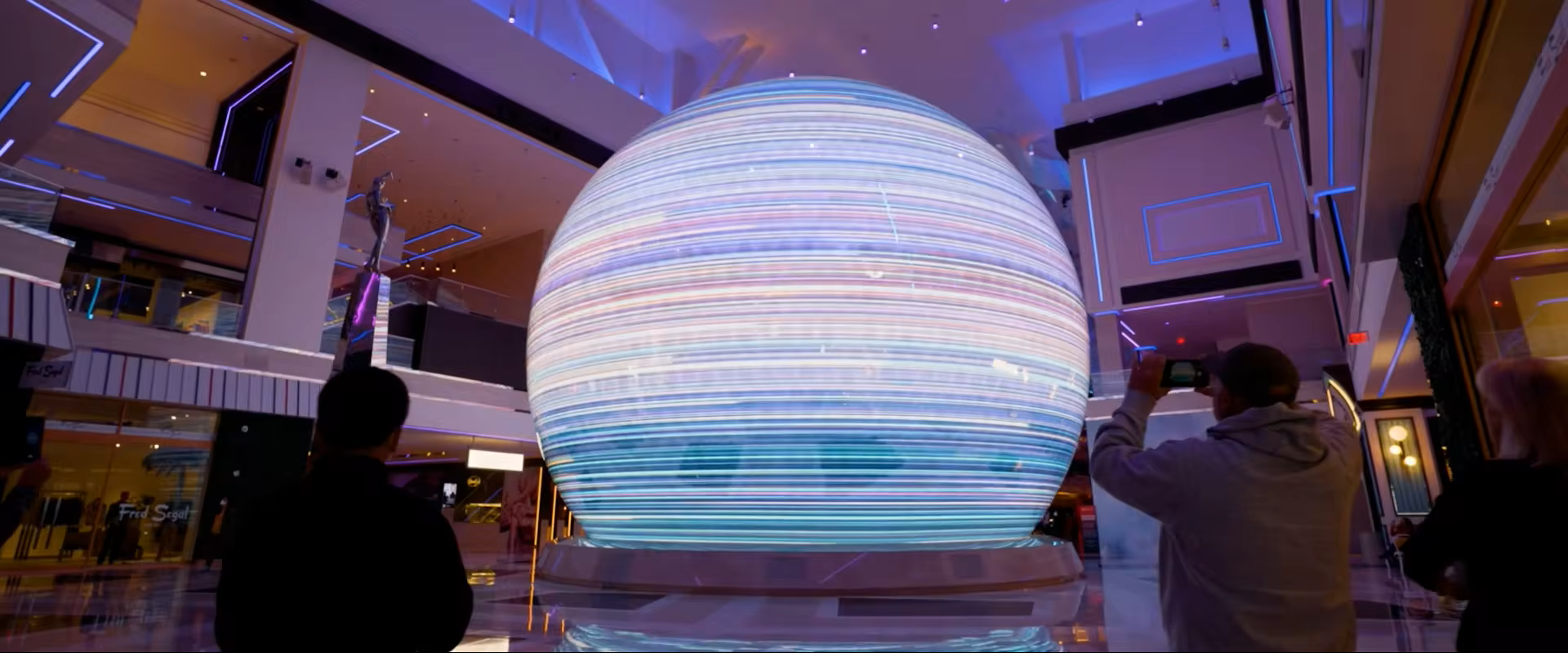

outdoor Sphere LED screen, also called led video ball, is a kind of creative led display which could be seen from 360 degree.
Spherical led screen is perfect for creative design & solution, which is for museum, shopping mall, conference room, events, exhibitions etc.
Sphere led video display is custom made size & solution. It is more attractive and eye-catching with sphere led display panel.
LED Globe Display Seamless Splicing:
Our Led video ball adopts trapezoidal circuit design. Perfect for good flatness and seamless splicing with our sphere led screen. It’s high refresh rate and color uniformity for excellent visual performance with our led video ball
LED Ball Screen Uniform Tapping:
Sphere LED screen supports uniform tapping technology. The visual performance is not distorted with such sphere led display technology. It can keep the most vivid picture and video quality for our led video ball
Sphere LED Screen Flexible Installations:
Our led spherical display is compatible with lots of installation methods. It can be freestanding design with base, or hanging installation from the ceiling. Wall-mounted solution with bracket is also feasible
Specifications:
Usage
outdoor
NO. P6
Pixel Pitch
6mm
LED Type
SMD3535
Physical Density
27777dot/m²
Scanning Mode
1/8
Module Size Customized
Spherical diameter
3m
Panel Material
iron
Panel Weight
Customized
Panel Flatness
≤0.10 mm
Brightness
≥5000 cd/㎡
Viewing Angle
≥140° (H) / 140° (V)
Refresh Rate
1920-3840Hz
Input Voltage AC
110~220V
Max. Power Consumption
≤750 w/㎡
Ave. Power Consumption
≤300 w/㎡
Maintenance Front/Back service
Ingress Protection Outdoor Front:IP65,Back:IP54
Working Voltage Input AC 100V-240V,50Hz/60Hz, 0utput: DC 5V
Working Temperature
-10℃～+40℃
Working Humidity
10%～90%RH
Lifespan
≥100,000 hrs
Strong Visual Impact & High Safety
Both indoors & outdoors application, with high light transmission and large pixel pitch.
Trapezoidal Line Design & Seamless Splicing
Lightweight construction, excellent wind resistance, easy installation,
efficient heat dissipation, convenient front and rear maintenance,
outstanding waterproof and seismic performance,
low cost of auxiliary installation frame.
Outdoor P6 Spherical Led Display Ball Screen Full Colour Custom MadeOutdoor P6 Spherical Led Display Ball Screen Full Colour Custom Made
